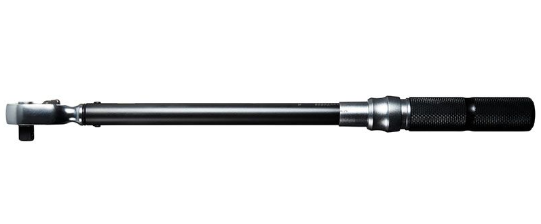

Key Features of the Atlas Copco ACTW05 Torque Wrench
High Torque Capacity
Torque Range: 5–25 Nm (3.7–18.4 ft·lb)
Ideal for precise torque applications in small-scale assembly and maintenance tasks.
Click-Type Mechanism
Provides a clear audible and tactile “click” when the set torque is reached.
Ensures accurate and repeatable tightening without over-torquing.
Rugged 1/4” Drive Square
Equipped with a 1/4-inch square drive, compatible with small sockets commonly used in low-torque applications.
Supports tasks in electronics, automotive, and precision assembly sectors.
Precision Accuracy
Accuracy of ±4%, compliant with EN ISO 6789-1:2017 standards.
Delivers reliable results for consistent process control in non-critical bolting applications.
Industrial-Grade Build
Heavy-duty construction with a strong ratchet mechanism and robust metal components.
Built to withstand daily use in tough working environments.

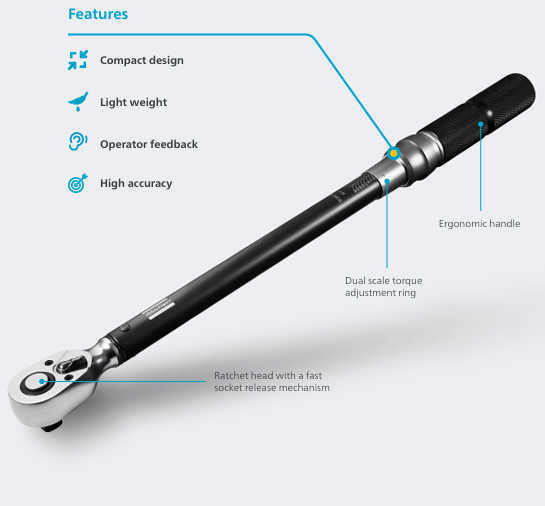

Ergonomic & Compact Design
Length: 248 mm
Weight: 1.28 kg
Provides leverage needed for torque applications while reducing operator strain.
Comfortable grip handle ensures user control and reduces fatigue during operation.
Specification |
Details |
|---|---|
Model |
ACTW05 |
Torque Range |
5 – 25 Nm |
Accuracy |
±4% (EN ISO 6789-1:2017) |
Drive Type |
Square |
Drive Size |
1/4 inch |
Click Mechanism |
Yes – Audible and Tactile Feedback |
Length |
248 mm |
Weight |
1.28 kg |
Function |
Manual Torque Application |
Use With |
Stand-alone or with Impact Wrenches |
