3/4″ FILTER REGULATOR / LUBRICATOR WITH STAND
0-200PSI MAX PRESSURE
Comes mounted to carry brace / stand
Length……. 370mm
Height……. 400mm
Weight…… 8kg
Hotline: 07 5580 5492
-
UTDBDP
1200MM x 20MM Blow Pipe
Great for use of cleaning debris in large areas with ease in places such as warehouses, trucks etc.
Send Enquiry -
3/8 Brass Inline Oiler
- Automatically lubricates your pneumatic tooling ensuring optimum performance and life span
- Manufactured from Brass and plastic keeping weight light whilst still maintaining a strong construction
Send Enquiry -
The Claw couplings from Atlas Copco are made of zinc-plated, dropforged, hardened steel and always comes with an oil resistant hose ring ensuring long life even under difficult conditions. The coupling head is the same for all hose sizes and can therefore be freely combined. These are suitable for large grinders, other high flow demand tools and indoor as well outdoor use, even below freezing point.
Benefits
-
Increased efficiency
-
Reduces air consumption
-
Increased lifetime and reliability
-
Reduced safety risks
CLICK HERE FOR A FULL LIST OF AIR FITTINGS
Send Enquiry -
-
All pneumatic tools require some oil in the air line to lubricate the inner moving parts and reduce the wear between them, cooling them and reducing friction. Percussion units (breakers, hammers) without oil cause strong wear on the piston and cylinder. Decades ago, compressors leaked so much oil that it was enough to lubricate hammers and breakers. But that does not happen anymore.
Breaker & Hammer Air-Oil is a fully synthetic lubricant with excellent lubricating, rust-preventing and de-icing properties, especially developed for TEX pneumatic breakers and hammers, as well as DIP and DOP pumps, for a smooth continuous operation under extreme conditions.
CLICK HERE FOR LIST OF ALL LUBRICANTS
Send Enquiry -

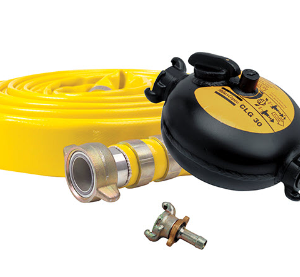

The Atlas Copco CLG30 Inline Lubricator is a premium industrial air-line lubrication system designed to protect pneumatic tools and machinery by delivering a continuous supply of atomised oil into the compressed air stream. Suitable for a wide range of compressed-air equipment, the CLG30 significantly reduces internal wear, improves operational efficiency, and extends equipment life.
Featuring Atlas Copco’s proven ejector principle lubrication technology, the CLG30 maintains consistent oil distribution regardless of installation position. Its innovative oil pick-up system allows the unit to operate efficiently whether mounted horizontally, vertically, or upside down, making it one of the most versatile lubricators available for industrial compressed air systems.
With a 1.3-litre oil reservoir, 20 bar maximum working pressure, and support for airflow rates up to 140 L/s, the CLG30 is ideal for supplying lubrication to high-demand pneumatic equipment including rock drills, breakers, chipping hammers, grinders, impact wrenches, pumps, and other industrial air-powered machinery. Built with Atlas Copco’s renowned engineering quality, it offers exceptional reliability and long-term performance in demanding environments.
Technical Specifications:
Feature Specification Max. Working Pressure 20 bar Hose Connection 25 mm Air Flow (Min.) 15 l/s Air Flow (Max.) 140 l/s Coupling Type European type Oil Volume 1.3 liters Send Enquiry -
The Atlas Copco X-LITE Flat Air Hose is a high-performance compressed air hose engineered to deliver maximum portability, flexibility, and durability for industrial pneumatic applications. Designed to withstand demanding worksite conditions, the X-LITE weighs up to three times less than traditional rubber hoses while occupying only one-fifth of the storage space, making it an ideal solution for mobile work crews and remote job sites.
Constructed with a reinforced woven fibre core and durable outer jacket, the X-LITE offers excellent resistance to pressure, abrasion, and daily wear while maintaining outstanding flexibility—even in cold weather. Supplied complete with forged claw couplings and heavy-duty hose clamps, it arrives fully assembled and ready for immediate use.
Suitable for compressors, pneumatic tools, rock drills, breakers, construction equipment, and mining operations, the Atlas Copco X-LITE delivers reliable compressed air distribution with the quality and durability expected from one of the world’s leading manufacturers of industrial pneumatic equipment.
Send Enquiry -
Features: Bi-directional 360deg rotation universal joint keeps air hoses straight and untwisted.
Send Enquiry -
AIR MANIFOLD TX-3AMF-TNK
Keeps the work site uncluttered by using only one hose to power up to 4 tools at once. Equipped with a gauge to monitor working pressure and a 200 psi pop-off valve to prevent excessive pressure build-up. Easily bolts to skids or other surfaces and multiple manifolds can be used in tandem.
NUMBER OF OUTLETS 4
CAPACITY 2.5G
WORKING PRESSURE 200PSI
TANK DIAMETER 8″
HEIGHT 10″”
LENGTH 23″
WEIGHT 10KG
Send Enquiry -
In-Line Air Filters:
Features: Protects air tools from rust, scale and dirt. Reduces the risk of expensive repairs
and increases tool life.Features a 40 micron sintered
bronze filter elementModel No. Inlet Size Outlet Size Length
9072 1/4”FPT 1/4”MPT 60MM
9073 3/8”FPT 3/8”MPT 60MM
9074M 1/2”FPT 1/2”MPT 80MM
9076M 3/4”FPT 3/4”MPT 80MM
9074 1/2”FPT 1/2”FPT 80MM
9076 3/4”FPT 3/4”FPT 80MM
Send Enquiry -
ULTIMATE PLIERS DISPLAY SET
TS3937 – 8″ COMBINATION PLIER
TS3944 – 8″ LONG NOSE PLIER
TS3975 – SIDE CUTTER
Send Enquiry -
Portable Air Line Lubricators with Integral Filter
Features: Designed to supply oil to air tools where it is not practical to use stationary lubricators.
Can be installed up to 25ft away. Features adjustable oil flow, visible oil supply and rugged casting
for use in severe conditions.Model No. Oil Capacity Pipe Size Rec’d Flow Max. PSI Height
TX-OL-F 1.4oz. ½” 30cfm 500 55mm
TX-1L-F 3.7oz. 3/4” 70cfm 260 60mm
Send Enquiry -
Portable Air Line Lubricators:
Features: Designed to supply oil to air tools where it is not practical to use stationary lubricators.
Can be installed up to 25ft away. Features adjustable oil flow, visible oil supply and rugged casting
for use in severe conditions.Model No. Oil Capacity Pipe Size Rec’d Flow Max. PSI Length Height Weight
0-R 1.4oz. ½” 30cfm 500 110mm 55mm 400g
1-R 3.7oz. 3/4” 70cfm 260 152mm 60mm 680g
2-R 11.0oz. 3/4” 70cfm 300 177mm 87mm. 907g
2A-R 11.0oz. 1” 70cfm 300 177mm 87mm 907g
3-R 16.0oz. 1” 150cfm 250 254mm 92mm 1kg
Send Enquiry -
Custom size Reaction Arms also available. Please contact us with required dimensions
Ph: 07 55805492
@: sales@ultimatetools.com.au
Send Enquiry -
Features: Help prevent injury due to broken hose connections
- Suits up to 3/4″hose diameter
Suitable for underground use
Send Enquiry -
Features: This lightweight long nose Air Blower is designed for cars, trucks and the marine industry.
