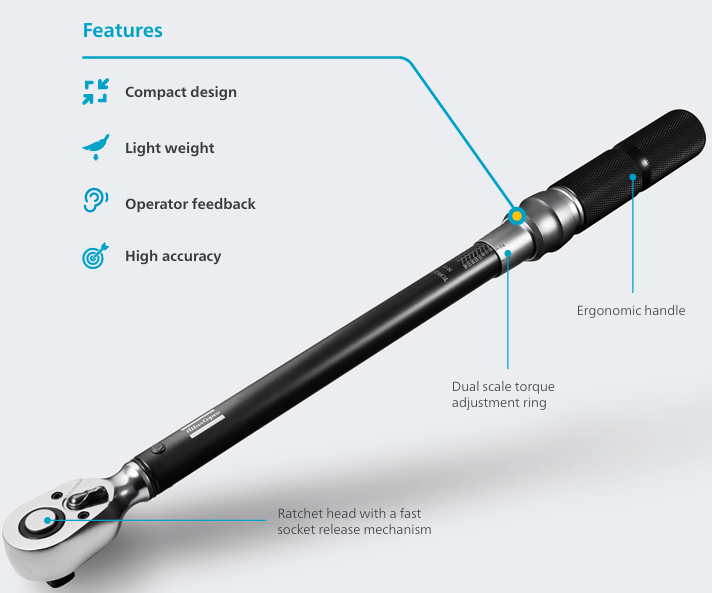

Key Features of the Atlas Copco ACTW20 Torque Wrench
High Torque Capacity
Torque Range: 20–100 Nm (14.8–73.8 ft·lb)
Designed for precise torque applications in automotive, industrial, and maintenance tasks.
Click-Type Mechanism
Provides a clear audible and tactile “click” when the set torque is reached.
Ensures accurate and repeatable tightening without over-torquing.
Rugged 3/8” Drive Square
Equipped with a 3/8-inch square drive, compatible with standard sockets used in medium-torque applications.
Supports tasks in automotive, industrial, and maintenance sectors.
Precision Accuracy
Accuracy of ±4%, compliant with EN ISO 6789-1:2017 standards.
Delivers reliable results for consistent process control in non-critical bolting applications.
Industrial-Grade Build
Heavy-duty construction with a strong ratchet mechanism and robust metal components.
Built to withstand daily use in tough working environments.
Ergonomic & Compact Design
Length: 428 mm
Weight: 1.5 kg
Provides leverage needed for torque applications while reducing operator strain.
Comfortable grip handle ensures user control and reduces fatigue during operation.
Specification |
Details |
|---|---|
Model |
ACTW20 |
Torque Range |
20 – 100 Nm |
Accuracy |
±4% (EN ISO 6789-1:2017) |
Drive Type |
Square |
Drive Size |
3/8 inch |
Click Mechanism |
Yes – Audible and Tactile Feedback |
Length |
428 mm |
Weight |
1.5 kg |
Function |
Manual Torque Application |
Use With |
Stand-alone or with Impact Wrenches |
