UAG832L – 4″ Angle Grinder – With Guard
Features: Rugged, lightweight aluminium alloy housing angle grinder for many applications. Removes rust and paint fast.Great for dressing up welds and grinding complex shapes.
Features safety lever throttle and govenor.
- Capacity…4″/100mm
- Free speed…12000rpm
- Hose size…3/8
- Air Inlet…1/4
- Length…228mm
- Weight…1.5Kg
- Air Pressure…90 psi
- Model type : Straight
- Motor type : Vane
- Max free speed : 15,500 r/min
- Max output : 0.85 kW
- Max output : 1.1 HP
- Max working pressure : 6.3 bar
- Max working pressure : 90 psig
- Air consumption at free speed : 7.2 l/s
- Air consumption at free speed : 15.3 cfm
- Air consumption at max output : 18 l/s
- Air consumption at max output : 38.1 cfm
- Air inlet thread BSP : 3/8 inch
- Rec hose size : 13 mm
- Rec hose size : 1/2 inch
- Weight : 0.8 kg
- Weight : 1.8 lb
- Length : 216 mm
- Length : 8.5 inch
- Lubrication Free : No
- Scatter damped : Yes
- Collet size : 1/4 inch
- Collet size : 6 mm
- EAC certified : Yes
- EC standard : ISO 11148-9
- EU directives : 2006/42/EC
- PRO : Yes
- Sound pressure : 76 dB(A)
- Sound standard : ISO15744
- Sound uncertainty : 3 dB(A)
- Vibration standard : ISO28927-12
- Vibration uncertainty : 0.7 m/s²
- Vibration value : 2.5 m/s²
Send Enquiry
| Technical Specifications | |
|---|---|
| Max Free Speed | 12000 r/min |
| Max output | 0.8 kW |
| Max wheel dia | 115 mm |
| Spindle thread | M14 |
| Length | 207 mm |
| Weight | 1.6 kg |
| Air consumption at free speed | 17 l/s |
| Air inlet thread BSP | 0.38 |
| Rec hose size | 0.51 mm |
| Sound power | 89 dB(A) |
| Sound pressure | 78 dB(A) |
| Sound standard | ISO15744 |
| Sound uncertainty | 3 dB(A) |
| Vibration standard | ISO28927-1 |
| Vibration value | 7.9 m/s² |
| Vibration uncertainty | 2.6 m/s² |
| Obsolete vibration standard | ISO8662-4 |
| Obsolete Vibration value | 7 m/s² |
Send Enquiry
Features: 1/4″ die grinder features a full bearing support air motor.Equipped with lever throttle for variable speed control. Powerful right angle grinder is designed to get into hard to reach areas where straight types are not accessible.
- Capacity…1/4″
- Free speed…22000rpm
- Hose size…3/8
- Air Inlet…1/4
- Length…0.77mm
- Weight…1. 18Kg
- Air Pressure…90 psi
CLICK HERE FOR PARTS BREAKDOWN
Send Enquiry
- Model type : Angle
- Motor type : Vane
- Max free speed : 12,000 r/min
- Max wheel dia : 125 mm
- Max output : 0.35 kW
- Max output : 0.47 HP
- Max working pressure : 7 bar
- Max working pressure : 102 psig
- Air consumption at free speed : 13 l/s
- Air consumption at free speed : 27.5 cfm
- Air consumption at max output : 9 l/s
- Air consumption at max output : 19.1 cfm
- Air inlet thread BSP : 1/4 inch
- Rec hose size : 10 mm
- Rec hose size : 3/8 inch
- Weight : 0.9 kg
- Weight : 2 lb
- Height : 80 mm
- Height : 3.1 inch
- Length : 225 mm
- Length : 8.9 inch
- Height over spindle : 71 mm
- Height over spindle : 2.8 inch
- Lubrication Free : No
- Support handle included : Yes
- Auto balancer : No
- Spindle thread : 3/8-24 UNF
- EAC certified : Yes
- EC standard : ISO 11148-7
- EU directives : 2006/42/EC
- PRO : Yes
- Sound power : 92 dB(A)
- Sound pressure : 81 dB(A)
- Sound standard : ISO15744
- Sound uncertainty : 3 dB(A)
- Spindle length : 0.67 inch
- Spindle length : 17 mm
- Vibration standard : ISO28927-1
- Vibration uncertainty : 3.3 m/s²
- Vibration value : 10 m/s²
Send Enquiry
Features: Rugged, lightweight aluminium alloy housing angle grinder for many applications.
Removes rust and paint fast.Great for dressing up welds and grinding complex shapes.
Features safety lever throttle and govenor.
- Capacity…4″/100mm
- Free speed…136000rpm
- Hose size…3/8
- Air Inlet…1/4
- Length…228mm
- Weight…1.5Kg
- Air Pressure…90 psi
Wheel Not Included.

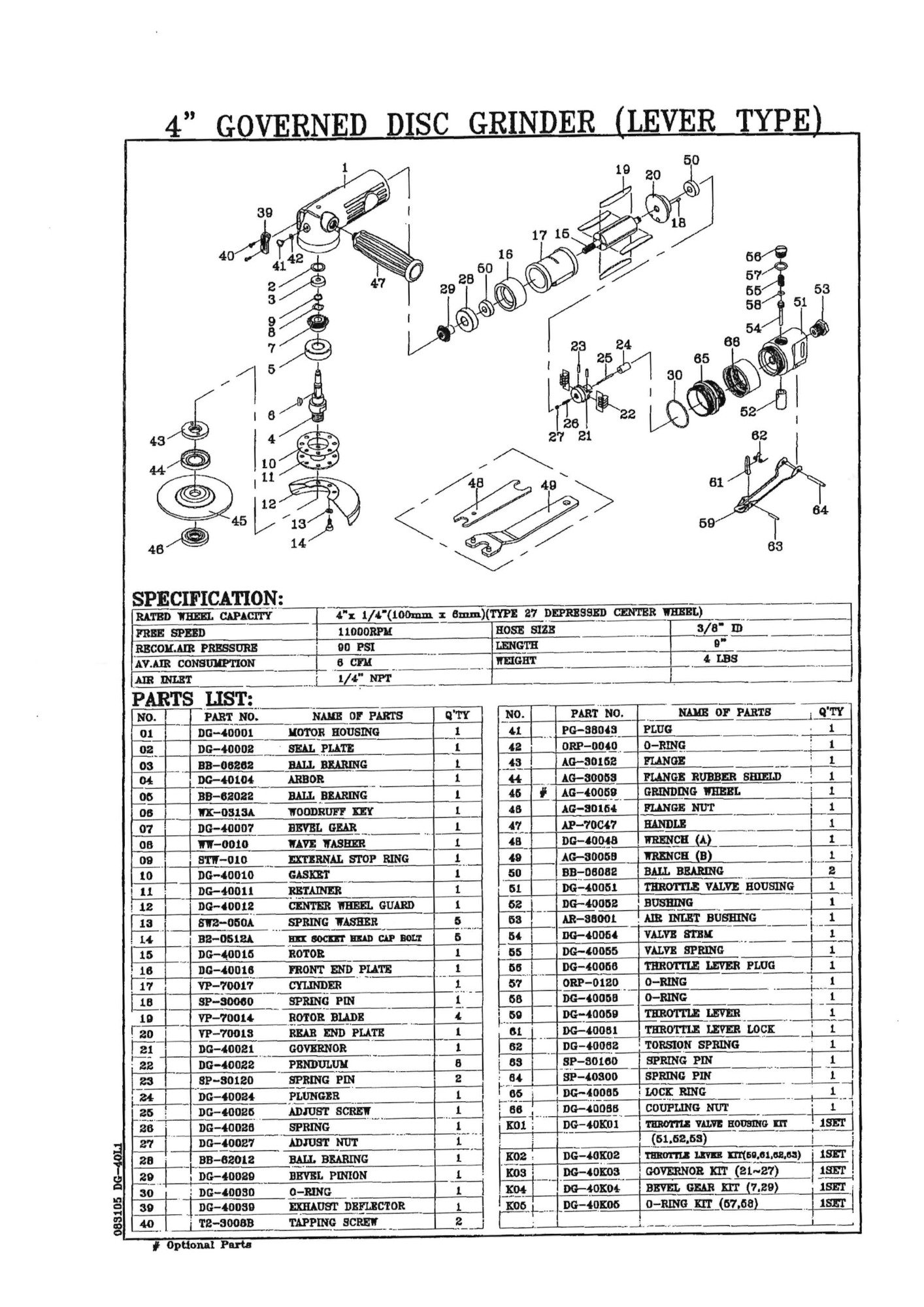

CLICK HERE FOR PARTS BREAKDOWN
Send Enquiry
- Model type : Angle
- Motor type : Vane
- Max free speed : 12,000 r/min
- Max wheel dia : 125 mm
- Max output : 0.9 kW
- Max output : 1.2 HP
- Max working pressure : 6.3 bar
- Max working pressure : 90 psig
- Air consumption at free speed : 17 l/s
- Air consumption at free speed : 36 cfm
- Air consumption at max output : 20 l/s
- Air consumption at max output : 42 cfm
- Air inlet thread BSP : 3/8 inch
- Rec hose size : 13 mm
- Rec hose size : 1/2 inch
- Weight : 1.8 kg
- Weight : 3.9 lb
- Height : 94 mm
- Height : 3.7 inch
- Length : 209 mm
- Length : 8.2 inch
- Height over spindle : 61 mm
- Height over spindle : 2.4 inch
- Lubrication Free : No
- Support handle included : Yes
- Auto balancer : No
- Spindle thread : M14
- EAC certified : Yes
- EC standard : EN ISO 11148-7
- EU directives : 2006/42/EC
- PRO : Yes
- Sound power : 95 dB(A)
- Sound pressure : 84 dB(A)
- Sound standard : ISO15744
- Sound uncertainty : 3 dB(A)
- Spindle length : 0.7 inch
- Spindle length : 18 mm
- UK legislation : S.I. 2008/1597
- UK standard : EN ISO 11148-7
- Vibration standard : ISO28927-1
- Vibration uncertainty : 2.2 m/s²
- Vibration value : 6.5 m/s²
Send Enquiry
| Sound power | 92 dB(A) | |
| Sound standard | ISO15744 | |
| Sound uncertainty | 3 dB(A) | |
| Vibration standard | ISO28927-12 | |
| Vibration value | <2.5 m/s² | |
| Air inlet thread BSP | 3/8 in | |
| Collet size | 1/4 in | |
| Length | 8.5 in | |
| Rec hose size | 1/2 in | |
| Weight | 1.8 lb | |
| Max free speed | 20500 r/min | |
| Model type | Straight | |
| Motor type | Vane | |
| PRO | Yes | |
| Scatter damped | Yes | |
| Air consumption at free speed | 19 cfm | |
| Air consumption at max output | 40.3 cfm | |
| Max working pressure | 90 psig | |
| Sound pressure | 81 dB(A) | |
| EAC certified | Yes | |
| EU directives | 2006/42/EC | |
| EC standard | ISO 11148-9 | |
| Max output | 1.2 hp | |
| Lubrication Free | No |
Send Enquiry
| Sound power | 96 dB(A) | |
| Sound standard | ISO15744 | |
| Sound uncertainty | 3 dB(A) | |
| Vibration standard | ISO28927-12 | |
| Vibration value | <2.5 m/s² | |
| Air inlet thread BSP | 3/8 in | |
| Collet size | 1/4 in | |
| Length | 8.5 in | |
| Rec hose size | 1/2 in | |
| Weight | 1.8 lb | |
| Max free speed | 25500 r/min | |
| Model type | Straight | |
| Motor type | Vane | |
| PRO | Yes | |
| Scatter damped | Yes | |
| Air consumption at free speed | 30.7 cfm | |
| Air consumption at max output | 44.5 cfm | |
| Max working pressure | 90 psig | |
| Sound pressure | 85 dB(A) | |
| EAC certified | Yes | |
| EU directives | 2006/42/EC | |
| EC standard | ISO 11148-9 | |
| Max output | 1.3 hp | |
| Lubrication Free | No |
Send Enquiry
- Model type : Straight
- Motor type : Vane
- Max free speed : 15,500 r/min
- Max output : 0.75 kW
- Max output : 1 HP
- Max working pressure : 6.3 bar
- Max working pressure : 90 psig
- Air consumption at free speed : 7.2 l/s
- Air consumption at free speed : 15.3 cfm
- Air consumption at max output : 18 l/s
- Air consumption at max output : 38.1 cfm
- Air inlet thread BSP : 3/8 inch
- Rec hose size : 13 mm
- Rec hose size : 1/2 inch
- Weight : 1 kg
- Weight : 2.2 lb
- Length : 315 mm
- Length : 12.4 inch
- Lubrication Free : No
- Scatter damped : Yes
- Collet size : 1/4 inch
- Collet size : 6 mm
- EAC certified : Yes
- EC standard : ISO 11148-9
- EU directives : 2006/42/EC
- PRO : Yes
- Sound pressure : 76 dB(A)
- Sound standard : ISO15744
- Sound uncertainty : 3 dB(A)
- Vibration standard : ISO28927-12
- Vibration value : <2.5 m/s²
Send Enquiry
-
- Model type : Straight
-
- Max free speed : 20,000 r/min
-
- Max output : 0.35 kW
-
- Max output : 0.47 HP
-
- Collet size : 6 mm
-
- Collet size : 1/4 inch
-
- Motor type : Vane
-
- Lubrication Free : No
-
- Air consumption at free speed : 21.8 cfm / 10.3 l/s
-
- Air consumption at max output : 27.5 cfm / 13 l/s
-
- Length : 180 mm / 7.1 inch
-
- Weight : 0.5 kg / 1.1 lb
-
- Max working pressure : 7 bar / 102 psig
-
- Air inlet thread BSP : 1/4 inch
-
- Air inlet thread NPT : 1/4 inch
-
- Rec hose size : 10 mm / 3/8 inch
-
- Sound standard : ISO15744
-
- Sound pressure : 78 dB(A)
-
- Sound uncertainty : 3 dB(A)
-
- Vibration standard : ISO28927-12
-
- Vibration value : 2.9 m/s²
-
- WEEE : 0
-
- EAC certified : Yes
-
- EU directives : 2006/42/EC
-
- EC standard : ISO 11148-9
Send Enquiry
- Model type : Angle
- Motor type : Vane
- Max free speed : 12,000 r/min
- Max wheel dia : 100 mm
- Max output : 0.35 kW
- Max output : 0.47 HP
- Max working pressure : 7 bar
- Max working pressure : 102 psig
- Air consumption at free speed : 13 l/s
- Air consumption at free speed : 27.5 cfm
- Air consumption at max output : 9 l/s
- Air consumption at max output : 19.1 cfm
- Air inlet thread BSP : 1/4 inch
- Rec hose size : 10 mm
- Rec hose size : 3/8 inch
- Weight : 0.9 kg
- Weight : 2 lb
- Height : 80 mm
- Height : 3.1 inch
- Length : 225 mm
- Length : 8.9 inch
- Height over spindle : 71 mm
- Height over spindle : 2.8 inch
- Lubrication Free : No
- Support handle included : Yes
- Auto balancer : No
- Spindle thread : 3/8-24 UNF
- EAC certified : Yes
- EC standard : ISO 11148-7
- EU directives : 2006/42/EC
- PRO : Yes
- Sound power : 92 dB(A)
- Sound pressure : 81 dB(A)
- Sound standard : ISO15744
- Sound uncertainty : 3 dB(A)
- Spindle length : 0.67 inch
- Spindle length : 17 mm
- Vibration standard : ISO28927-1
- Vibration uncertainty : 2.99 m/s²
- Vibration value : 8,6 m/s²
Send Enquiry
Features: This Barrel grinder has the industry’s most powerful motor in its class. Lightweight and easy to work with. Safety throttle lever can be rotated to suit your needs.
Made in Japan.
- Capacity…3″
- Free speed…60000rpm
- Hose size…3/8
- Air Inlet…1/4
- Length…430mm
- Weight…2Kg
- Air Pressure…90 psi
