Features: Straight type durable one piece housing with 3mm needles ideal for restricted areas.
- Needle Quantity.. 12
- Capacity…1/4″
- Hose size…3/8
- Air Inlet…1/4
- Length…333mm
- Weight…2.1Kg
- Air Pressure…90 psi

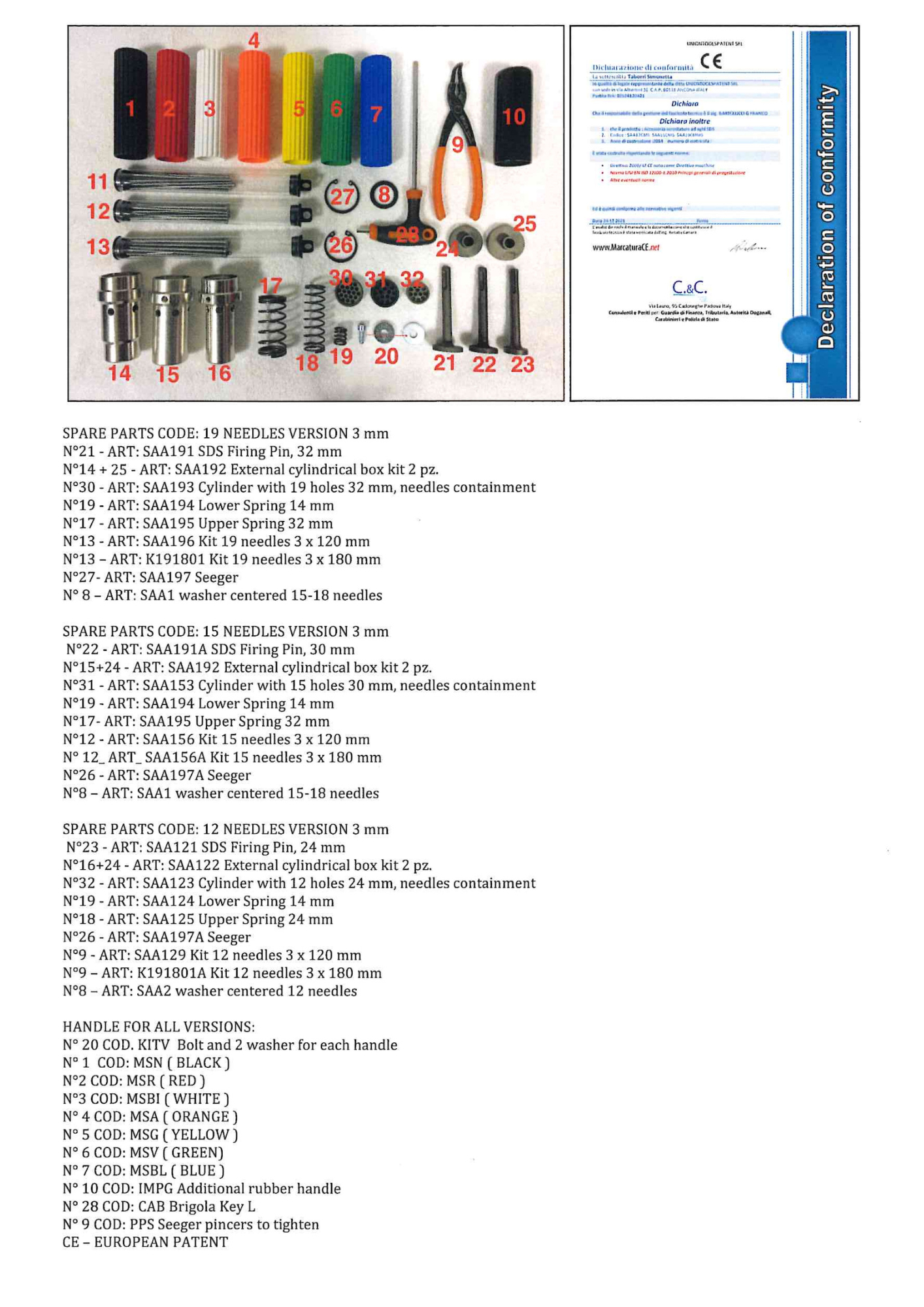

CLICK HERE FOR SPARE PARTS
Send Enquiry
- Blows : 40 Hz
- Stroke : 11 mm
- Max working pressure : 6.3 bar
- Piston dia : 0.9 inch
- Piston dia : 23 mm
- Air consumption : 1.9 l/s
- Air inlet thread BSP : 1/4
- Rec hose size : 10 mm
- Rec hose size : 378 inch
- Weight : 2.35 kg
- Weight : 5.2 lb
- Length : 370 mm
- Vibration uncertainty : 0.8 m/s²
- Vibration value : 3.1 m/s²
- Dampening : Vibration-damped
- Air consumption : 4 cfm
- EAC certified : Yes
- EC standard : ISO 11148-4
- EU directives : 2006/42/EC
- Energy per blow : 3 J
- Energy per blow : 2.2 ft lb
- Max working pressure : 90 psi
- PRO : Yes
- Sound power : 96 dB(A)
- Sound pressure : 85 dB(A)
- Sound standard : ISO15744
- Sound uncertainty : 3 dB(A)
- Stroke : 0.43 inch
- UK legislation : S.I. 2008/1597
- UK standard : ISO 11148-4
- Vibration standard : ISO28927-9
Send Enquiry
| Model | LPD-HD-T | |
| Activation type | By | trigger lever |
| Hydraulic system | Open centre | |
| Service weight | kg | 45 *3 |
| Oil flow | l/min | 28-40 |
| Working pressure | bar | 105-125 |
| Impact rage | bpm | 1,320 (30 l/min) |
| Post/rod diameters | mm | 70-150 |
| Vibration level 3 axes (ISO 28927-10) 20lpm *4 | m/s² | 20.1 |
| Sound power level guaranteed (2000/14/EC) *4 | Lw dB(A) | 118 |
| Sound pressure level (ISO 11203) *4 | Lp, r=1m dB(A) | 105 |
| EHTMA class | D/E | |
| Part number | 1801 4140 00 | |
Send Enquiry
| Model | LPP 10 HD | |
|---|---|---|
| Service weight | kg (lb) | 60 (132) |
| Oil flow | l/min (gpm) | 20-40 (5.28-10.57) |
| Working pressure | bar (psi) | 100-160 (1,450-2,321) |
| Max back pressure | bar (psi) | 30 (435) |
| Lift capacity per stroke | mm (in) | 12-200 (0.4-7.8) |
| Pulling force | kg (lb) | 6.000 (13,228) |
| Full pulling force | kg (lb) | 10.000 (22,046) |
| EHTMA class | C/D/E | |
| Part number | 1801 8100 03 |
Send Enquiry
Powerful tampers for all soil compaction jobs
Our pneumatic tampers are your go-to tool for compacting jobs, even for tough soil types like clay. Lightweight and ergonomic, these powerful backfill tampers can be operated by a single person.
Applications:
– Compacting soil around foundations
– Compacting backfill in trenches
| Tampers | TAM 14 | TAM 19 | |
|---|---|---|---|
| Weight | kg | 13,6 | 19 |
| Length | mm | 1320 | 1270 |
| Body diameter | mm | 71,4 | 98,4 |
| Butt size | mm | 127 | 158,8 |
| Air consumption | l/s | 8,4 | 13 |
| Impact frequency | bpm | 800 | 780 |
| Vibration level 3 axes (ISO 20643) | m/s² | 32,3 | 44,8 |
| Sound pressure level (1S0 11203) | dB(A) | 95 | 94 |
| Hose connection | mm | 12,7 | 19 |
CLICK HERE FOR MORE INFO ON TAMPERS
Send Enquiry
- Blows : 190 Hz
- Max working pressure : 6.3 bar
- Air consumption : 0.6 l/s
- Air inlet thread BSP : 1/8
- Rec hose size : 3.2 mm
- Weight : 0.12 kg
- Length : 175 mm
- Vibration uncertainty : 1 m/s²
- Vibration value : 5.6 m/s²
- EAC certified : Yes
- EC standard : ISO 11148-4
- EU directives : 2006/42/EC
- Max working pressure : 90 psi
- PRO : Yes
- Sound pressure : 72 dB(A)
- Sound standard : ISO15744
- Sound uncertainty : 3 dB(A)
- UK legislation : S.I. 2008/1597
- UK standard : ISO 11148-4
- Vibration standard : ISO28927-9
Send Enquiry
- Needle Quantity … 19
- Needle Size…. 3x180mm
- Impact Rate…. 4,500 BPM
- Hose size…3/8
- Air Inlet…1/4
- Length… 400mm (inc needles)
- Weight… 3kg
- Air Pressure…90 psi
CLICK HERE FOR SPARE PARTS
Send Enquiry
| Model | LPD-LD-T | |
| Activation type | By | trigger lever |
| Hydraulic system | Open centre | |
| Service weight | kg | 18 *1 |
| Oil flow | l/min | 20 |
| Working pressure | bar | 80-100 |
| Impact rage | bpm | 2,300 |
| Post/rod diameters | mm | Oct-60 |
| Vibration level 3 axes (ISO 28927-10) 20lpm *4 | m/s² | 17.5 |
| Sound power level guaranteed (2000/14/EC) *4 | Lw dB(A) | 116 |
| Sound pressure level (ISO 11203) *4 | Lp, r=1m dB(A) | 102 |
| EHTMA class | C | |
| Part number | 1801 3940 06 | |
